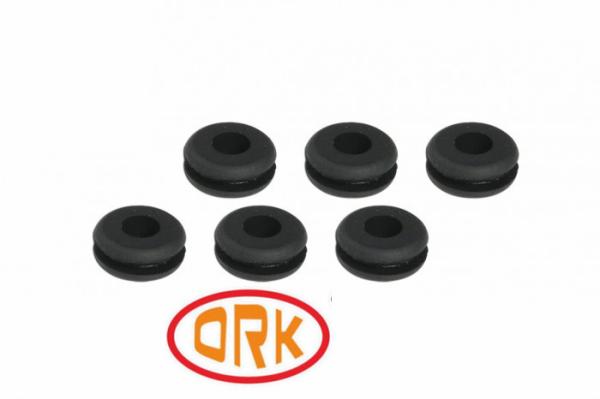

Molded EPDM Rubber Grommet Industrial , Rubber Cable Grommet Heat Resistant
Product Description

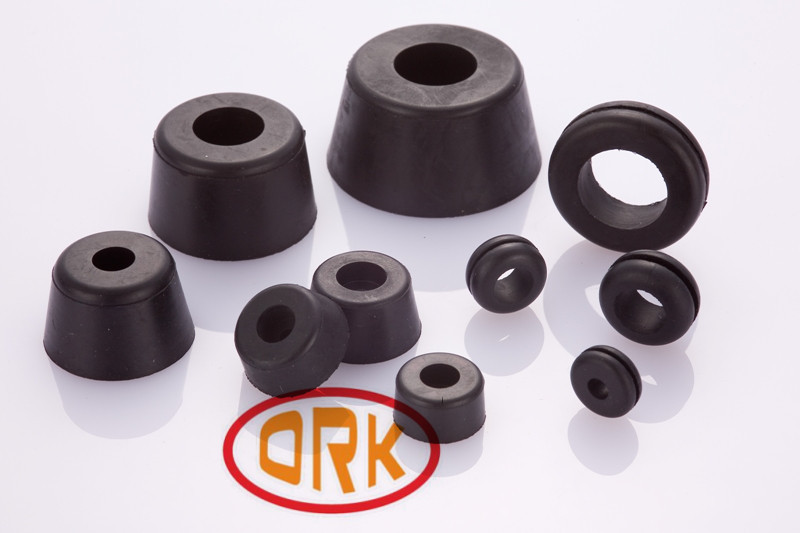

Rubber grommets, auto rubber wiring harness and rubber parts and rubber pipe grommets
1 . Material: EPDM, SBR, NBR, CR, NR, SIL, etc
2. Characteristic: Gas-resistance, liquid resistance, high and low temperature resistance, anti-aging, corrosion resistance, acoustic
3. Hardness: 40± 5
4 . Temperature: 175° C
5 . OEM orders are available
6 . Certification: ISO/TS16949
7 . Application: Used in different vehicle requirements of exhaust pipes, and other accessories
The flowing is NBR 70 test report
| NBR 70 TEST REPORT ASTM D2000 M2BG 714 B14 EO14 EF11 EF21 EA14 F17 |
| PROPERITIES | SPECIFICATION | TEST RESULT | TEST METHOD |
| Hardness shore A | 70±5 | 72 | D2240 |
| Tensile MPA Min | 14 | 14.5 | D12 |
| Elongation % Min | 250 | 315 | D412 |
| Gravity | | 1.263 | D297 |
| Heat resistant 70h 100℃ Hardness change | ±15 | +5 | D573 |
| Tensile strength% | ±30 | +15 | |
| Elongation Max | -50 | -12 | |
| Compression Max 22h at 100℃ | 25 | 14 | D395 |
| NO1 oil resistant | | | |
| Change in hardness | -10~+5 | +1 | D471 |
| Change in tensile Max | -25 | -16 | |
| Change in Elongation | -45 | -20 | |
| Change in Volume% | 0~25 | +6 | |
| Fuel resistant 70 H at 23℃ | | | |
| Hardness change | ±10 | +3 | D471 |
| Tensile change Max | -25 | -8 | |
| Elongation change Max | -25 | -10 | |
| Change in Volume | -5~+10 | +3 | |
| Water Resistant | | | D417 |
| Change in Hardness | | +3 | |
| Change in tensile | | +5 | |
| Change in Elongation | | -14 | |
| Change in Volume | ±15 | +3 | |
| Low Temperature resistant | | | D2137 |
| 3 MIN -40℃ | Non brittle | Pass | D2137 |
